SIHARD 2360 Steel
Designation by Standards
Brand Name | Ravne | Mat. No. | DIN | EN | AISI/SAE |
SIHARD 2360 | OH252 | 1.2360 | X48CrMoV8-1-1 | - | - |
Chemical Composition (in weight %)
C | Si | Mn | Cr | Ni | V | W | Others | |
0.47 | 0.80 | 0.40 | 7.50 | 1.37 | - | 1.35 | - | - |
Description
Medium alloyed cold work tool steel with high toughness and wear resistance.
Applications
Severely stressed machine blades for cellulose and paper industry, woodworking milling cutters, flat and circular blades for cutting sheets/plates of thickness 5 to 15 mm.
Physical properties (average values) at ambient temperature
Modulus of elasticity [103 x N/mm2]: 210 Density [g/cm3]: 7.80

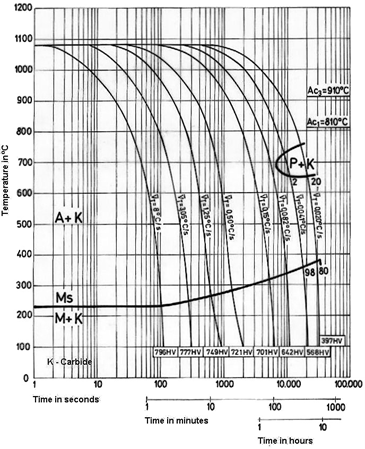

Continuous Cooling Transformation (CCT) Diagram

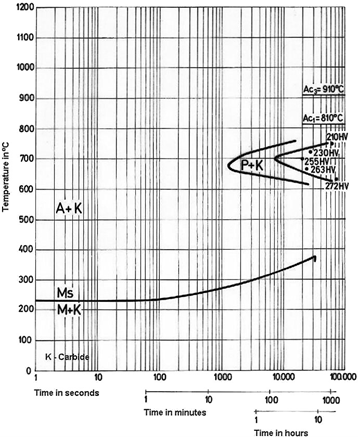

Time-Temperature Transformation (TTT) Diagram
Hardening
Harden from a temperature of 1080-1120oC followed by oil quenching.
Tempering
Tempering temperature: Please see the diagram bellow.
Tempering Diagram
Forging
Hot forming temperature: 1100-900oC.
Machinability
No data.
Forms manufactured: Please see the Dimensional Sales Program.
